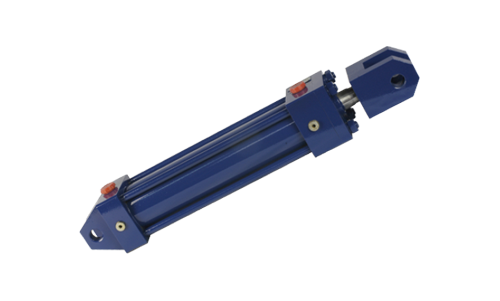

Tie-Rod Hydraulic Cylinders

 .

Rated pressure: 50 kg/cm²



These Tie-rod type, Medium Pressure hydraulic cylinders are available with a wide range of mounting arrangements conforming to CETOP recommendations.



Specifications

– Rated pressure 50 kg/cm².

– Peak pressure 70 kg/cm².

– Cylinder bore diameters: 25mm to 350mm.

– Strokes up to 3000 mm.

– Temperature range: -20°C to 90°C.

– Optional sealing systems for temperatures up to        180°C.



Application

These cylinders are designed and constructed for high duty cycles in Machine Tool applications.

---

* We also offer a wide range of custom built
Tie-Rod Hydraulic Cylinders.





Rated pressure: 160 kg/cm²



These Tie-rod type, Medium Pressure hydraulic cylinders are available with a wide range of mounting arrangements conforming to CETOP recommendations.



Specifications

– Rated Pressure 160 kg/cm².
– Cylinder bore diameters: 25 mm to 350 mm.
– Strokes up to 3000 mm.
– Temperature range: -20°C to 90°C.
– Optional sealing systems for temperatures up to        180°C)



Application

These cylinders are designed for high pressure heavy duty Machine Tool applications.

---

* We also offer a wide range of custom built
Tie-Rod Hydraulic Cylinders.





Rated pressure: 210 kg/cm²



Heavy Duty, Compact, Tie-rod type cylinders for Industrial applications designed as per ISO 6020/2 specifications and rated up to 210 kg/cm². These Cylinders are offered in 3 rod sizes per bore and 9 standard mounting styles.

Specifcations

– Rated Pressure 210 kg/cm².
– Cylinder Bore Diameters up to 200 mm.
– Strokes up to 3000 mm.
– Temperature range: -20°C to 90°C.
– Optional sealing systems for temperatures up to        180°C)



Application

These Cylinders are used in a wide range of Industrial applications and are very popular due to the compact size and interchangeability with most reputed manufacturers.

---

* We also offer a wide range of custom built
Tie-Rod Hydraulic Cylinders.
